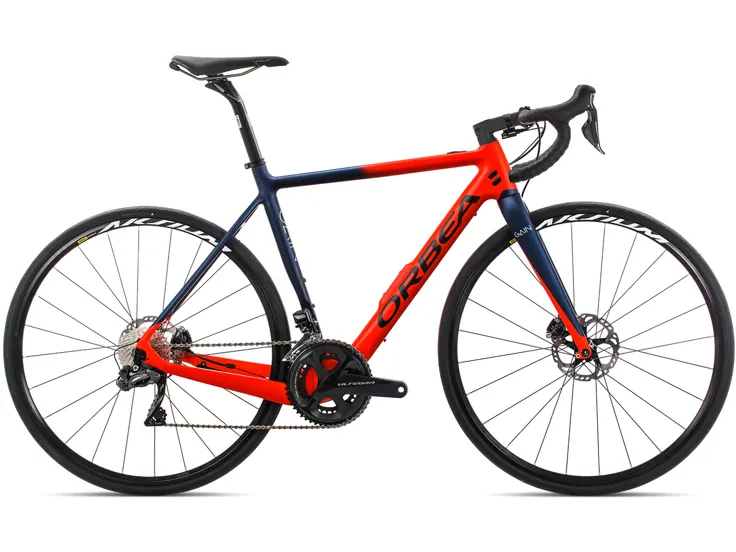

Orbea Gain M20i 2020 – Electric Road Bike
Orbea Gain M20i 2020 – Electric Road Bike

£4,999.00

Description

Orbea Gain M20i 2020 – Electric Road Bike

Summary

The Orbea Gain M20i carbon electric road bike was designed to enhance your ride, not dominate it. The Enough Power and Enough Energy concepts result in an exceptionally lightweight, sportive and rideable e bike – a machine that heeds the call of the open road. Gain embraces your sweat and hard work and works in unison with your efforts to tick off the kilometres. System interfaces are modern, integrated and sleek. There are no bulky components to reduce the riding experience, distractions have been minimised so it’s just you, Gain and the hours ahead.

Key Features:

Orbea Gain monocoque carbon frame with fully integrated battery
Carbon fork with flat mount disc brake
Shimano Ultegra Di2 2×11 speed electronic drivetrain for easy gear shifting
Shimano Ultegra hydraulic disc brakes for all-weather stopping power
Mavic Aksium Elite Disc for reliable rolling
Sizes: X Small, Small, Medium, Large, X Large
Colours: Black/Grey, Blue White, Red/Black
The Orbea Gain M20i is available with 0% APR finance
Drive information:

Motor: Ebikemotion X35, rear hub drive, 40Nm
Battery: Ebikemotion 36v downtube integrated battery pack
User Interface / Display: iWoc One top tube button
Connectivity: Bluetooth smart phone app
Orbea Gain Review

Mode Button.
Save space on your handlebar for a GPS if you wish, or ride without clutter. Gain’s control center is an attractive and discreet button on the top tube. With the simple iWoc ONE interface you can power the system on or off, check motor assist level and view the remaining battery charge. Colored LED lighting puts all the information you need right at your fingertips.

Internal Battery.
The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest and most discreet unit. Gain’s Enough Energy concept provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.

Drive System.
The heart of Gain, the rear hub motor is the key to Gain’s Enough Power concept. The sophisticated drive system provides enough smooth and reliable assistance at levels designed to enhance your ride, not dominate it. And since the motor is at the hub, you’ll experience drag-free pedaling when Gain is not providing a push.

C.A.N Integration.
Gain doesn’t require a multitude of wires, ports or accessories. The CAN (Controller Area Network) bus port provides a single interface for charging, system diagnosis or attaching the external backup battery.

PAS Sensor.
Gain’s smooth and balanced assist requires an advanced sensor. Blending perfectly with our effort to create a sleek and discrete system, the cassette lock ring holds 20 magnets that are detected by the integrated dropout sensor. The system monitors your pedaling input and adjusts power accordingly.

APP.
A smartphone and smartwatch compatible app enables deeper control of the iWoc system used by Gain. Ride tracking, activity and GPS route uploading and other functions are available from your mobile device, making Gain an even more valuable tool.

Versitile.
The new carbon frame includes the same integration features other Orbea carbon frames have, plus the complexity of also fully integrating the motor power cable and the P.A.S. sensor.

Mavic.
In order to bring the best quality built, we´ve team up with Mavic and brought their bestsellers into the Gain family; the Aksium Elite and Cosmic Carbon wheels.<br>

Tyre Clearance.
The move to wider tires is happening everywhere, with even road racers opting for the comfort and lower rolling resistance of 25C or 28C tyres. To make Gain even more versatile it is possible to mount most 40C tyres, either with clincher or tubeless.

Specification

Frame: Orbea Gain Carbon, Monocoque carbon structure, Flat Mount Disc Brakes, 135×9 QR, max 700x40C, Inner Cable routing, Ebikemotion X35 specific, integrated battery, integrated sensor, Iwock One compatible
Fork: Gain Carbon Flat mount
Headset: FSA 1-1/8 – 1-1/2″ Integrated Carbon Cup ACB Bearings
Stem: OC2 Road stem -8º
Bars: OC2 Road Handlebar, reach 80mm, drop 125mm
Front Brake: Shimano R8070 Hydraulic Disc
Rear Brake: Shimano R8070 Hydraulic Disc
Front Mech: Shimano Ultegra Di2 R8050
Rear Mech: Shimano Ultegra Di2 R8050 GS
Shifters: Shimano ST-8070
Speed: 22
Rims: Mavic Aksium Elite Disc UST
Rear Hub: Orbea Road 12x100mm, thread M12xP1.5
Front Tyre: Mavic Yksion Pro 700×28 UST
Rear Tyre: Mavic Yksion Pro 700×28 UST
Seat Post: FSA K-Force SB25 31.6x350mm Di2 compatible
Saddle: Selle Royal Asphalt GR
Chainset: Shimano Ultegra R8000 34x50t
Chain: KMC X11
Cassette: Shimano Ultegra R8000 11-32t 11-Speed
Motor: Ebikemotion X35 25kmh
User Interface: OC monochrome ANT+ LEV

Additional information

Specification: Orbea Gain M20i 2020 – Electric Road Bike

BATTERY CAPACITY 200+Wh
BATTERY POSITION Internal
BATTERY RANGE 25-50 Miles
BRAKE TYPE Hydraulic Disc Brake
BRAND Orbea
FRAME MATERIAL Carbon Fibre
FRAME STYLE Regular
GEAR TYPE Derailleur, Electronic Gears
GENDER Male
MODEL YEAR 2020
MOTOR BRAND Ebikemotion
MOTOR TYPE Rear Hub Motor
NUMBER OF GEARS 22
PEDAL SENSOR Other
SUSPENSION No Suspension
APPROXIMATE WEIGHT 12kg
WHEEL SIZE 700c
